FRAMESLESS GLASS

BALUSTRADE




The new advanced supporting glass system based on aluminum profiles is the ideal system for glazed railings (balconies and building enclosures) with high architectural standards.

It offers an impressive aesthetical and functional result with no view limit. It is maintenance free, easy to clean and is fabricated under UNI EN 10807 & NF P01-013.

The system can be placed on a final floor or on a parapet by using a 16 or 20mm width and 100cm height glazing (triplex, securit). The system base is covered by aluminum side covers which allow the replacement of the glazing without damaging the system or the finalfloor. Side covers are available in RAL, special colours, anodized type inox, wood imitation.

The system propose the use of 3 different models of rail top (circular, oval and circular with special opening). Rail tops are optional and are available in the same color as side covers. A glazing without a rail top is possible but with polished edges.

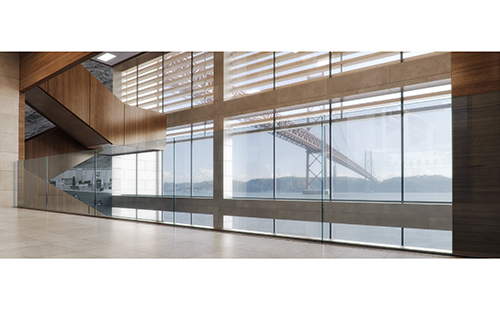

cline 2.jpeg

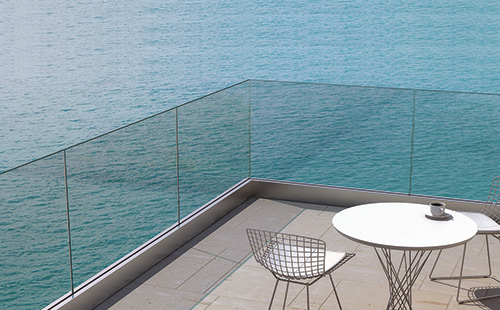

cline 4.jpeg

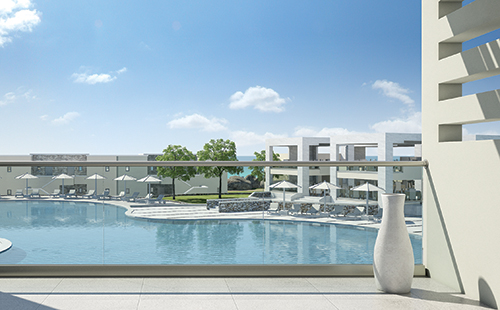

cline 5.jpeg
